Condition:
New
Spindle Taper:
BT40, BT40
No. of Spindles:
Single
Type:
VERTICAL
Dimension(L*W*H):
2500*2000*2300
Weight (T):
3.8 T
Table Size (mm):
800*400
CNC Control System:
GSK, FANUC, KND, Siemens
Number of Axes:
3
Table Travel (X) (mm):
650
Table Travel (Y) (mm):
400
Table Travel (Z) (mm):
500
Positioning Accuracy (mm):
0.01
Repeatability (X/Y/Z) (mm):
±0.008
Spindle Motor Power(kW):
5.5/7.5
Max. Table Load(kg):
500 kg
Min. Time of Tool Change(s):
2
Tool Magazine Capacity:
16
Key Selling Points:
Competitive Price
Warranty:
1 Year
Voltage:
3 Phase 380V 415V
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant
Showroom Location:
United Kingdom, United States, Italy, France, Germany, Philippines, Spain, Thailand
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor

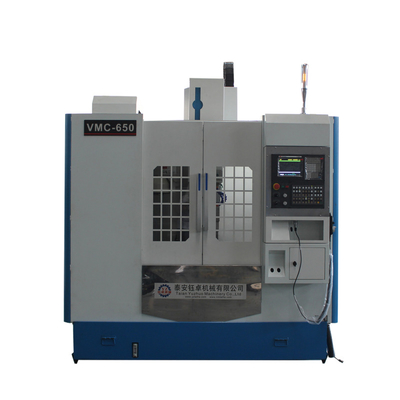

Name:
VMC650
Spindle Nose To Countertop:
90-590
Spindle Speed:
8000 Rpm
CNC Controller:
GSK /FUNUC/ KND /Siemens
Workbench Size:
800*400
Tool Changer:
Funnel type/ Arm type
Lubrication:
Auto Lubrication
OEM:
YES
Length*Width*Height:
2500*2000*2300
